Genie Boom Lift Z-30/20 N

That boom lift have Zero tail swing and zero front arm swing in stowed and raised working positions, along with its 1.19 m (47 in) wide chassis, make this boom the only one with true narrow aisle access. Dual parallelogram riser design allows ascent and descent along a vertical plane without retracting or extending the boom lift. The RJ model features a rotating jib that adds an industry-leading 180° (2 x 90°) of horizontal rotation. 180° powered platform rotation for precise platform positioning and easy operation. Drive performance of 35% grade ability and 3.3 mph travel speed. Motor controller eliminates the need for forward/reverse contactors or speed sensors, reducing complexity and improving reliability.

• Cleaning
• Electrical
• Facilities management
• Heating, ventilating & air conditioning
• Mechanical engineering
• Painting & decorating

• Maximum Working height : 11.14 m (36 ft)
• Max Horizontal Reach :6.53 m (21 ft 5 inch)
• Max Up Clearance: 3.86 m (12 ft 8 in)
• Lifting Capacity : Up to 227Kg(500 lbs)
• Platform Rotation : 180°

Articulating Boom lift Z-30/20 NRJ

Zero tail swing and zero front arm swing in stowed and raised working positions, along with its 1.19 m (47 in) wide chassis, make this boom the only one with true narrow aisle access. Dual parallelogram riser design allows ascent and descent along a vertical plane without retracting or extending the boom. The RJ model features a rotating jib that adds an industry-leading 180° (2 x 90°) of horizontal rotation. 180° powered platform rotation for precise platform positioning and easy operation. Drive performance of 35% grade ability and 3.3 mph travel speed. Motor controller eliminates the need for forward/reverse contactors or speed sensors, reducing complexity and improving reliability.

• Cleaning
• Electrical
• Facilities management
• Heating, ventilating & air conditioning
• Mechanical engineering

• Maximum Working height :10.89 m (35 ft 2 in)
• Lifting Capacity : Up to 227Kg(500 lbs)
• Max Horizontal Reach : 6.25 m (20 ft 6 inch)
• Platform Rotation : 180°
• Up and Over Clearance : 3.86 m (12 ft 8 in)

Features

• 48 V DC (eight 6V 350 Ah capacity batteries)
• Universal 30A battery smart charger
• Low battery voltage interrupt
• Solid Rubber non marking Tyres
• 2*4 Wheel drive
• Turntable rotation - 355° non-continuous
• Jib Options - 1.22 m (4 ft) Articulating jib boom / horizontal rotating jib boom

Genie Boom Lift Model Z-33/18

The new lightweight electric Genie Z-33/18 boom lift is highly manoeuvrable and well suited to tasks on sensitive surfaces such as in airports, shopping centres and theatres – where space is restricted, plus routine outdoor maintenance tasks. It was designed from the ground up to combine lightweight, compact dimensions with powerful low-consumption motors, shorter ground to top lifting time with the fast mast boom system, plus improved ergonomic features and easy to access machine components to speed up troubleshooting and servicing. The direct electric 48V drive system provides outstanding battery life between charges. For overnight recharging, the on board 30amp universal smart charger automatically adjust to the input AC Voltage and frequency shutdown when the battery pack is fully charged.

• Cladding
• Cleaning
• Facilities management
• Heating, ventilating & air conditioning
• Airports
• Shopping Centers
• theaters

• Working height : 12 m (39ft 4in)
• Lifting Capacity : Up to 200Kg(440 lbs)
• Horizontal Reach : 5.57 m (18 ft 3 inch)
• Turntable Rotation : 400° non-continuous
• Up and Over Clearance : 4.28 m (14 ft 1 inch)

Genie Boom Lift Model Z-34/22 DC or Bi Energy

The revolutionary Genie Bi-Energy system combines the quiet, emission-free and efficient operation of a 48V DC machine with the versatility of a diesel powered generator to provide a boom that is ideal for indoor and outdoor applications. The Bi-Energy has the added feature of an on-board diesel powered generator. The generator acts as a 100 amp battery charger to provide enough electrical power to operate all boom functions even when the batteries are fully discharged. The direct electric, 48V drive system provides outstanding battery life when not using the engine generator. An on-board 25 amp AC charger is standard to provide a means for overnight charging.

• Cleaning
• Electrical
• Facilities management
• Mechanical engineering

• Working height : 12.52 m(40ft 6 inch)
• Lifting Capacity : Up to 227Kg(500 lbs)
• Horizontal Reach: 6.78 m (22 ft 3 inch)
• Turntable Rotation : 355° non-continuous
• Up and Over Clearance : 4.57 m (15 ft)

Features

• Locking turntable covers (Bi-Energy only).
• Dual parallelogram for vertical wall tracking.
• Lift Guard Contact Alarm.
• 48V DC power source (eight 6V 315 Ah batteries).
• On board alternator powered by Tier IV Kubota 9.9 kW (13.3 hp) engine (Bi-energy model only).
• Universal 30A battery smart charger.

Genie Boom Lift Model Z-34/22 IC

• Industrial cleaning
• Construction
• Electrical
• Facilities management
• Mechanical engineering
• Property development

• Max Platform Height : 34 ft 6 in | 10.52 m
• Max Horizontal Reach : 22 ft 3 in | 6.78 m
• Up and Over Clearance : 15 ft | 4.57 m
• Platform Capacity : 500 lb | 227 kg

Genie Boom Lift Model Z-34/22 N

• Cleaning
• Electrical
• Facilities management
• Heating, air conditioning
• Mechanical engineering
• Retail

• Max Platform Height : 34 ft 6 in | 10.52 m
• Max Horizontal Reach : 22 ft 3 in | 6.78 m
• Up and Over Clearance: 15 ft 3 in | 4.65 m
• Platform Capacity : 500 lbs | 227 kg

Battery Operated Boom Lift Model Z-40/23 N and Z-40/23 N RJ

The Genie Boom lift Z-40/23N Models are the first in the industry to feature the efficient AC drive system, which combines DC batteries with 3 Phase AC drive motors for quiet, more energy efficient operation and longer battery life. This advanced system yields better drive speed and grade ability, and the drive wheels work independently for excellent traction control. Proportional lift and drive controls allow precise positioning of the boom and smooth drive performance. Several models feature a 48V DC electric drive system, which can be freely used in areas where quiet, emission-free operation is important. For added flexibility, the energy saving Z-40/23N boom lift control system allows efficient operation of multiple functions at the same time – which allows you to get the jobs done faster. Proportional lift and drive controls allow you to manage the speed of each function and make precise adjustments in tight areas.

• Power Source - 48 V DC (eight 6 V batteries) 350 Ah capacity.
• Universal 30A battery smart charger
• Solid rubber Non Marking Tyres
• Drive System - 29 V 3 phase AC
• Variable speed high efficiency hydraulic power unit

• Working height :14.32m(46ft 5 inch)
• Lifting Capacity : Up to 227Kg(500 lbs)
• Horizontal Reach : 6.91 m (22 ft 8 inch)
• Turntable Rotation :355° non-continuous
• Up and Over Clearance :6.48m (21 ft 3 inch)

Genie Boom Lift Z-45/25 DC and Z-45/25J DC

With an extended reach and a variety of outstanding performance features, the Z-45/25 DC and Bi-Energy with or without additional jib boom lift handles the most challenging high-reach jobs. The Genie Bi-Energy system combines the quiet, emission-free and efficient operation of a 48V DC machine with the versatility of a diesel generator powered machine to provide a boom that is ideal for indoor and outdoor applications. The Self-levelling platform rotates 90° to either side, while the jib boom moves 130° to 139° vertically depending on the model. The 4 ft (1.22m) jib moves horizontally 180° on rotating jib models for extra working range. Proportional controls allow you to control the speed of each function and make smooth, precise adjustments in tight areas.

• Power Source – DC - 48 V DC (eight 6 V batteries) 350 Ah capacity.
• Universal 30A battery smart charger.
• On board alternator powered by Tier IV Kubota 9.9 kW (13.3 hp) engine (Bi-energy model only)
• Auxiliary power unit – 24 V DC.
• Solid rubber Non Marking Tyres.
• Jib Options - Articulating or Horizontal rotating jib boom - 1.22 m (4 ft).
• Variable speed high efficiency hydraulic power unit.
• Tyre Options - Industrial foam-filled (standard) / Industrial non-marking foam-filled

• Working Height: 15.87m(51 ft 6 inch)
• Lifting Capacity : Up to 227Kg(500 lbs)
• Horizontal Reach : 7.62 m (25ft)
• Turntable Rotation : 355° non-continuous
• Up and Over Clearance: 7.04m (23 ft 1 inch)

Genie Boom Lift Model Z-45/25 RT and Z-45/25J RT

With an extended reach and a variety of outstanding performance features, the Z-45/25 DC and Bi-Energy with or without additional jib boom handles the most challenging high-reach jobs. The Genie Bi-Energy system combines the quiet, emission-free and efficient operation of a 48V DC machine with the versatility of a diesel generator powered machine to provide a boom that is ideal for indoor and outdoor applications. The Self-levelling platform rotates 90° to either side, while the jib boom moves 130° to 139° vertically depending on the model. The 4 ft (1.22m) jib moves horizontally 180° on rotating jib models for extra working range. Proportional controls allow you to control the speed of each function and make smooth, precise adjustments in tight areas.

• Power Source – DC - 48 V DC (eight 6 V batteries) 350 Ah capacity./li>
• On board alternator powered by Tier IV Kubota 9.9 kW (13.3 hp) engine (Bi-energy model only).
• Universal 30A battery smart charger.
• Auxiliary power unit – 24 V DC.
• Solid rubber Non Marking Tyres.
• Jib Options - Articulating or Horizontal rotating jib boom - 1.22 m (4 ft) .
• Variable speed high efficiency hydraulic power unit.
• Tyre Options - Industrial foam-filled (standard) / Industrial non-marking foam-filled.

• Working height : 15.94m (51 ft 9 inch)
• Lifting Capacity : 24 ft 7 in | 7.49 m
• Horizontal Reach : 23 ft 5 in | 7.14 m
• Turntable Rotation : 500 lb | 227 kg
• Up and Over Clearance : 7.24m (23 ft 9 inch)

Genie Boom Lift Model Z-60/37 DC and FE

The Battery Operated Boom Lift Z -60/37 DC or a fuel electric hybrid model Z -60/37FE are ideal for outdoor and indoor applications, such as construction sites, sports arenas, malls, manufacturing facilities, and even challenging pedestrian areas with the demand for low noise and clean performance. Genie articulating Z booms provide lifting versatility with a combination of up, out and over positioning capabilities. The Genie Fast Mast boom system allows operators to descend and retrieve materials and quickly return to working height. 4-wheel drive and full-time active oscillating axles provide traction for grade ability up to 45%. Easy to transport at a compact length of 20 ft and 8 in (6.3 m) when stowed. All of these features are available on the Z -60/37DC that weighs only 16,600 lbs (7,530 kg) or the Z -60/37FE that weighs only 17,100 lbs (7,756 kg). Recharges overnight by 120v or 240v plugin and it recharges to 80% in 4 hours with an on-board generator.

• Drive System - 34 V 3-Phases AC
• Auxiliary power Unit – 12V DC
• Active oscillation (Standard on 4WD)
• Power source 48 V DC battery pack (390Ah FLA standard on DC) / (415Ah AGM standard on FE)
• Digital hour meter with battery charge indicator and diagnostic readout.
• Drive Options - 4WD Electric AC (standard).
• Tyre Options - Rough terrain foam-filled (standard on FE) / non-marking foam filled (standard on DC)

• Working height : 20.16m(65 ft 7 inch)
• Lifting Capacity : Up to 227Kg(500 lbs)
• Horizontal Reach : 11.15 m (36ft 7 inch)
• Turntable Rotation : 355° non-continuous
• Up and Over Clearance : 7.39m (24 ft 3 inch)

Articulated Genie Boom Lift Z-62/40

The Genie Z-62/40 boom lift provides lifting versatility with a combination of “up-out-over” positioning and outreach capabilities. Offering excellent manoeuvrability, a Fast Mast boom system that allows rapid movement of the platform from full height to below grade, a zero tail swing, and this machine is particularly well-suited to enable you to travel smoothly on uneven ground. The Genie Z-62/40 boom lift delivers impressive horizontal reach, up and over reach and Zero tail swing for rough terrain performance in tight spaces. The Genie Fast Mast system quickly gets workers from ground to max height. It will also cut service time with the easy access engine and hydraulics.

• Deutz Stage IIIA 2011 L04i 4 cylinder turbo diesel 55 kW (74 hp) / Deutz diesel 2.9L4 36 kW (48 hp).
• Auxiliary Power unit – 12V DC.
• 360° continuous turntable rotation.
• Dual parallelogram for vertical wall tracking.
• Anti-restart engine protection.
• Intake air heater (Deutz engine).
• jib boom - 1.52 m (5 ft).
• Drive Options – 2WD/4WD.

• Max Working height : 20.87m(67ft 11 inch)
• Lifting Capacity : Up to 227 Kg(500 lbs)
• Horizontal Reach : 12.42m (40ft 5 inch)
• Vertical jib Rotation : 135°(+78°/-57°)
• Up and Over Clearance : 7.80m (25 ft 7 in)
• Grade ability(4WD) 45% : 45%

Articulated Genie Boom Lift Z-80/60

The Z-80/60 has an innovative reverse-articulating secondary boom for 8.83m (29 ft) of up and over reach with zero front arm swing. The Genie Fast Mast system allows you to lower the platform to the ground without having to lower the secondary boom — so operators can ascend and descend quickly and efficiently. In addition, this timesaving design raises both primary and secondary booms simultaneously to help the operator reach full elevation fast and maximize productivity. Quiet diesel engines like the turbo-charged Deutz option give you more power and increased performance at higher altitudes, as well as plenty of torque for superior grade ability and terrain ability. Four-wheel drive with full-time positive traction handles rough ground conditions to enhance the smoothness of the ride.

• Agriculture & forestry
• Civil engineering
• Construction
• Electrical
• Energy supply
• Heating, ventilating & air conditioning
• Industrial maintenance
• Roofing
• Security
• Steel erection

• Max Platform Height : 78 ft | 23.77 m
• Max Horizontal Reach : 60 ft | 18.29 m
• Up and Over Clearance : 29 ft | 8.83 m
• Weight: 6,550.0 kg

Genie Boom Lift ZX-135/70

• Civil engineering
• Construction
• Energy supply
• Facilities management
• Industrial maintenance
• Roofing
• Security
• Steel erection

• Max Platform Height : 135 ft | 41.15 m
• Max Horizontal Reach : 69 ft 9 in | 21.26 m
• Up and Over Clearance : 75 ft 6 in | 23.01 m
• Below Ground Reach : 19 ft 3 in | 5.87 m
• Platform Capacity : 600 lb | 272 kg

Genie Boom Lift Model Z-45 XC

• Civil engineering
• Construction
• Energy supply
• Industrial maintenance
• Photography & promotion
• Security
• Steel erection

• Max Horizontal Reach : 24 ft 8 in | 7.54 m
• Max Platform Height : 45 ft 6 in | 13.86 m
• Max Up and Over Clearance : 23 ft 8 in | 7.22 m
• Platform Capacity : 660 lb Unrestricted, 1,000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted

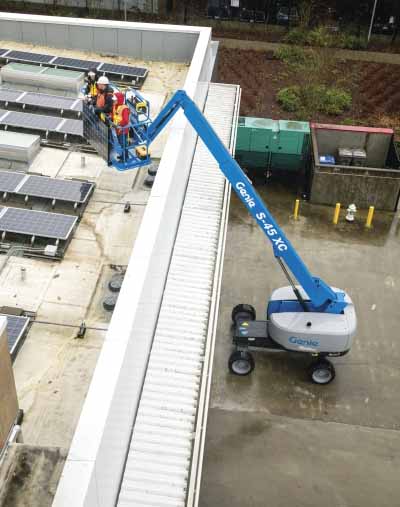

Genie Telescopic Boom Lift Model S-40 and S-45

• Industrial cleaning
• Civil engineering
• Cleaning
• Construction
• Electrical
• Facilities management
• Mechanical engineering

• Max Platform Height : 40 ft | 12.19 m
• Max Horizontal Reach : 31 ft 8 in | 9.67 m
• Below Ground Reach : 3 ft 2 in | 0.97 m
• Platform Capacity : 500 lb | 227 kg

Genie Telescopic Boom Lift Model S-60X and S-65

• Bridge & underbridge
• Civil engineering
• Construction
• Roofing
• Security
• Steel erection

• Max Platform Height: 58 ft 4 in | 19.79 m
• Max Horizontal Reach : 50 ft 10 in | 15.48 m
• Below Ground Reach : 5 ft 7 in | 1.70 m
• Platform Capacity : 500 lb/1,000 lb | 227 kg/ 454 kg
• Machine Width and Length (when in operation) : S-60 X: 8 ft 2 in, 27 ft 9 in / S-65: 8 ft 2 in, 30 ft 11 in | S-60 X: 2.49 m, 2.72 m / S-65: 2.49 m, 9.42 m

Genie Telescopic Boom lift Model S-80 XC and S-85 XC

• Industrial cleaning
• Cleaning
• Electrical
• Facilities management
• Heating, ventilating & air conditioning
• Mechanical engineering

• Max Platform Height : S-80 XC: 80 ft / S-85 XC: 85 ft | S-80 XC: 24.38 m / S-85 XC: 25.91 m
• Max Horizontal Reach : S-80 XC: 68 ft 4 in / S-85 XC: 74 ft 6 in | S-80 XC: 20.83 m / S-85 XC: 22.71 m
• Below Ground Reach : S-80 XC: 5 ft 6 in / S-85 XC: 8 ft 10 in | S-80 XC: 1.68m / S-85 XC: 2.69 m
• Platform Capacity : 660 lb Unrestricted, 1000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted
• Machine Width and Length (when in operation) : S-80 XC: 8ft 2 in, 37 ft 1 in / S-85 XC: 8 ft 2 in, 40 ft 7 in | S-80 XC: 2.49 m, 11.3 m / S-85 XC: 2.49 m, 12.37 m

Genie Telescopic Boom Lift Model SX-105 XC

• Agriculture & forestry
• Civil engineering
• Construction
• Energy supply
• Security
• Steel erection
• Transport

• Max Platform Height : 105 ft | 32 m
• Max Horizontal Reach : 80 ft | 24.38 m
• Below Ground Reach : 8 ft 10 in | 2.69 m
• Platform Capacity : 660 lb Unrestricted, 1000 lb Restricted | 300 kg Unrestricted / 454 kg Restricted
• Machine Width and Length (when in operation) : 12 ft 11 in / 46 ft 9 in | 3.94 m / 14.24 m

Telescopic Boom Lift Model SX-125 XC

• Civil engineering
• Construction
• Energy supply
• Industrial maintenance
• Photography & promotion
• Security
• Steel erection

• Max Platform Height : 125 ft | 32 m
• Max Horizontal Reach : 80 ft | 24.38 m
• Below Ground Reach: 8 ft 10 in | 2.69 m
• Platform Capacity : 660 lb Unrestricted, 1000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted
• Machine Width and Length (when in operation) : 12 ft 11 in / 46 ft 9 | 3.94 m / 14.24 m

Telescopic Boom Lift Model SX-135 XC

• Bridge & underbridge
• Civil engineering
• Construction
• Energy supply
• Industrial maintenance
• Security
• Steel erection

• Platform Height : 135 ft | 41.15 m
• Max Horizontal Reach : 90 ft | 27.43 m
• Below Ground Reach : 19 ft 8 in | 6.00 m
• Platform Capacity : 660 lb Unrestricted, 1000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted
• Machine Width and Length (when in operation) : 12 ft 11 in / 64 ft 10 in | 3.94 m / 19.76 m

Telescopic Boom Lift Model SX-150

• Construction
• Highway maintenance
• Industrial maintenance
• Property development

• Max Platform Height : 152 ft | 48.33 m
• Max Horizontal Reach : 80 ft | 24.38 m
• Below Ground Reach : 2 ft | 0.61 m
• Platform Capacity : 750 lb | 340 kg
• Machine Width and Length (when in operation) : 12 ft 11 in / 46 ft 9 in | 3.94 m / 14.24 m

Telescopic Boom Lift Model SX-180

• Agriculture & forestry
• Civil engineering
• Construction
• Industrial maintenance
• Security
• Steel erection

• Max Platform Height : 180 ft | 54.86 m
• Max Horizontal Reach : 80 ft | 24.38 m
• Below Ground Reach : 2 ft | 0.61 m
• Platform Capacity : 750 lb | 340 kg
• Machine Width and Length (when in operation) : 16 ft 6 in / 53 ft 1 in | 5.03 m / 16.18 m

Telescopic Boom Lift Model S-60 XC and S-65 XC

• Civil engineering
• Construction
• Facilities management
• Industrial maintenance
• Roofing
• Security
• Steel erection

• Max Platform Height : S-60 XC, 59 ft 8.5 in / S-65 XC, 65 ft 1 in | S-60 XC, 18.20 m / S-65 XC, 19.84 m
• Max Horizontal Reach : S-60 XC, 50 ft 10 in / S-65 XC, 54 ft 2 in | S-60 XC, 15.49 m / S-65 XC, 16.51 m
• Below Ground Reach : 5 ft 7 in | 1.70 m
• Platform Capacity : 660 lb Unrestricted, 1,000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted
• Machine Width and Length (when in operation) : 8 ft 2 in, 31 ft 11 in | 2.49 m, 9.73 m

Telescopic Boom Lift Model S-80X and S-85

• Agriculture & forestry
• Civil engineering
• Construction
• Facilities management
• Industrial maintenance
• Security
• Steel erection

• Max Platform Height : S-80: 80 ft / S-85: 85 ft | S-80: 24.38 m / S-85: 25.91 m
• Max Horizontal Reach : S-80: 71 ft 6 in / S-85: 76 ft 6 in | S-80: 21.79 m / S-85: 23.32 m
• Below Ground Reach : S-80: 6 ft 1 in / S-85: 9 ft 6 in | S-80: 1.85 m / S-85: 2.9 m
• Platform Capacity : S-80: 500 lbs/1,000 lbs | S-85: 500 lbs | S-80: 227 kg/ 454 kg | S-85: 227 kg
• Machine Width and Length (when in operation) : S-80: 8 ft 2 in / 36 ft 10 in | S- 85: 8 ft 2 in / 40 ft 4 in | S-80: 2.49 m / 11.23 m | S-85: 2.49 m / 12.29 m

Telescopic Boom Lift Model S-105

• Civil engineering
• Construction
• Industrial maintenance
• Security
• Steel erection

• Max Platform Height : 100 ft | 30.48 m
• Max Horizontal Reach : 75 ft | 22.86 m
• Below Ground Reach : 6 ft 6 in | 1.98 m
• Platform Capacity : 750 lb | 340 kg
• Machine Width and Length (when in operation) : 11 ft 2 in / 46 ft | 3.40 m / 14.02 m

Telescopic Boom Lift Model S-125

• Civil engineering
• Construction
• Industrial maintenance
• Security
• Steel erection

• Max Platform Height : 120 ft | 36.58 m
• Max Horizontal Reach : 75 ft | 22.86 m
• Below Ground Reach : 6 ft 6 in | 1.98 m
• Platform Capacity : 750 lb | 340 kg
• Machine Width and Length (when in operation) : 11 ft 1 in / 46 ft 9 in | 3.38 m / 14.25 m

Battery Boom Lift Model Z-60/37 DC and FE

• Civil engineering
• Construction
• Industrial maintenance
• Security
• Steel erection

• Max Platform Height : 59 ft 7 in | 18.16 m
• Max Horizontal Reach : 36 ft 7 in | 11.15 m
• Max Up and Over Clearance : 24 ft 3 in | 7.39 m
• Below Ground Reach : 8 ft 1 in | 2.46 m
• Platform Capacity : 500 lb | 227 kg

Battery Boom lift Model Z-45/25 DC and Z-45/25J DC

• Civil engineering
• Construction
• Highway maintenance
• Industrial maintenance
• Local authorities
• Mechanical engineering
• Security
• Steel erection

• Max Platform Height : 45 ft 6 in | 13.87 m
• Max Horizontal Reach : 22 ft 8 in | 6.91 m
• Max Up and Over Clearance : 21 ft 3 in | 6.48 m
• Platform Capacity : 500 lb | 227 kg

Battery Boom lift Z-40/23 N and Z-40/23 N RJ

• Civil engineering
• Construction
• Industrial maintenance
• Security
• Steel erection

• Max Platform Height : 40 ft 5 in | 12.32 m
• Max Horizontal Reach : 22 ft 8 in | 6.91 m
• Max Up and Over Clearance : 21 ft 3 in | 6.48 m
• Platform Capacity : 500 lb | 227 kg

Battery Boom lift Model Z-34/22 DC or Bi Energy

• Civil engineering
• Construction
• Industrial maintenance
• Security
• Steel erection

• Max Platform Height : 34 ft 6 in | 10.52 m
• Max Horizontal Reach : 22 ft 3 in | 4.57 m
• Max Up and Over Clearance (riser extended) : 15 ft | 4.57 m
• Platform Capacity : 500 lb | 227 kg

Battery Boom Lift Z-33/18

• Civil engineering
• Construction
• Industrial maintenance
• Security
• Steel erection

• Max Platform Height : 32 ft 10 in | 10 m
• Max Horizontal Reach : 18 ft 3 in | 5.57 m
• Max Up and Over Clearance : 14 ft 1 in | 4.28 m
• Platform Capacity : 440 lb | 200 kg

Genie Battery Boom Lift Z-30/20 N

• Civil engineering
• Construction
• Industrial maintenance
• Security
• Steel erection

• Max Platform Height : 30 ft | 9.14 m
• Max Horizontal Reach : 21 ft 5 in | 6.53 m
• Max Up and Over Clearance : 12 ft 8 in | 3.86 m
• Platform Capacity : 500 lb | 227 kg

Trailer Mounted Boom Lift TZ-34/20

• Civil engineering
• Construction
• Industrial maintenance
• Security
• Steel erection

• Max Platform Height : 34 ft | 10.36 m
• Horizontal Reach : 18 ft 4 in | 5.59 m
• Platform Capacity : 500 lbs | 227 kg
• Up and Over Clearance : 16 ft 1 in | 4.90 m
• Weight : 3,155 lb | 1,431 kg

Trailer Mounted Boom Lift TZ-50

• Civil engineering
• Construction
• Industrial maintenance
• Security
• Steel erection

• Max Platform Height : 49 ft 6 in | 15.09 m
• Horizontal Reach : 29 ft 2 in | 8.89 m
• Platform Capacity : 500 lbs | 227 kg
• Up and Over Clearance : 22 ft | 6.71 m
• Weight : 4,400 lb | 1,996 kg
