Genie Articulating Boom Lift ZX™-135/70
Genie Boom lifts are perfect for outdoor construction and industrial applications Genie engine-powered articulating ZX™ booms provide lifting versatility with a combination of up, out and over positioning capabilities and outreach that's second to none.

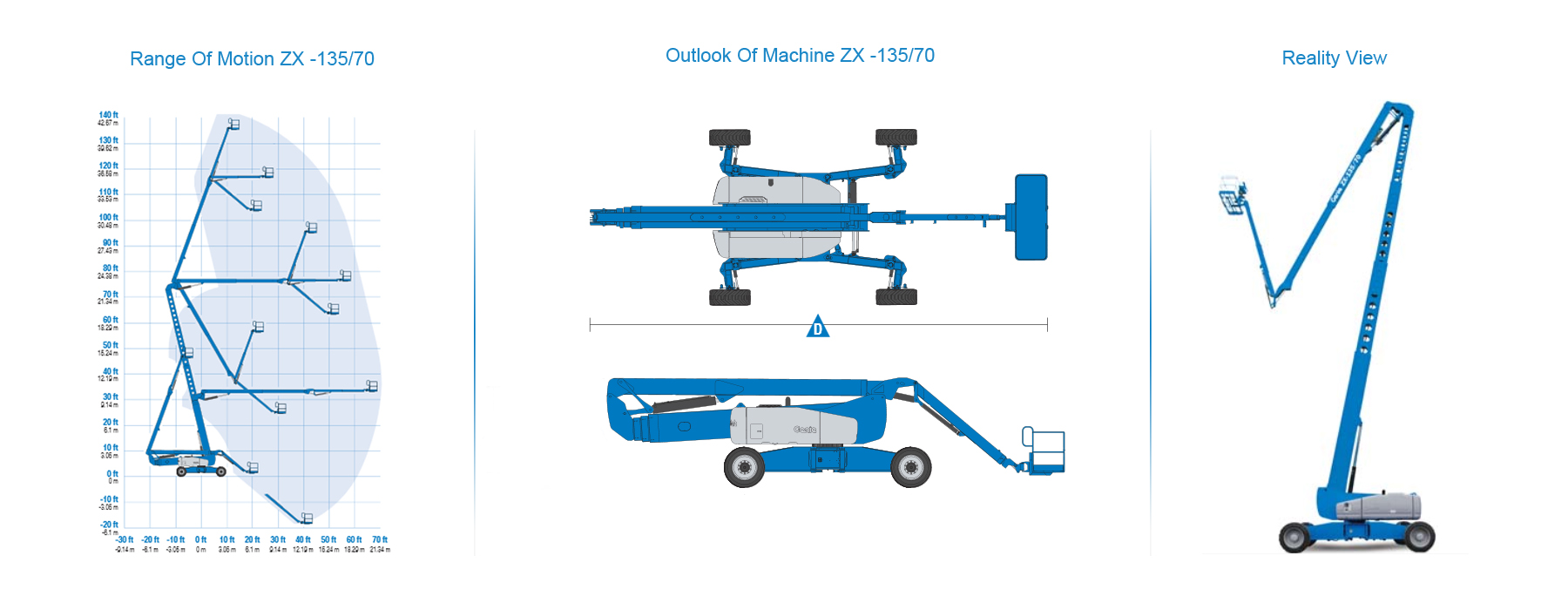

Over View of Genie Boom Lifts ZX™-135/70
- Genie New X-design drive chassis extends and retracts to provide both stability on the job and a narrow profile for transport.
- Genie Telescoping Extend™ jib extends from 12 to 20 ft (3.66 to 6.10 m) and provides a 110˚ vertical range of motion.
- 360˚ continuous rotation turntable and 160˚platform rotation for fast, easy positioning.
- Genie boom lift have four-wheel drive with full-time positive traction handles rough ground conditions to enhance the smoothness of the ride.
- Genie boom lift have four-wheel steer with front-wheel, rear-wheel, crab- and coordinated- steer options available to provide additional manoeuvrability.
- Genie Lifts work full-time positive traction 4WD and four wheel brakes.
- The ALC 1000 electronic control system provides menu-based adjustments for machine and component calibration as well as on-screen multi-language system diagnostics.
Specifications of Genie Boom Lifts ZX™-135/70
Working Height* | 141 ft (43.15 m) |
---|---|
Width - axles extended Width - axles retracted |
16 ft 6 in (5.03 m) 8 ft 2 in (2.49 m) |
Horizontal Reach - riser extended Horizontal Reach - riser retracted |
59 ft 2 in (18.03 m) 69 ft 9 in (21.26 m) |
Up & Over Clearance - riser extended Up & Over Clearance - riser retracted |
75 ft 6 in (23.01 m) 32 ft 6 in (9.91 m) |
Lift Capacity | 600 lbs (272 kg) |
Downloads of Genie Boom Lifts ZX™-135/70
Other Products of Genie Boom Lifts
Product | Working Height* | Horizontal Reach | Up & Over Clearance | |
---|---|---|---|---|
Z™-34/22 IC | 40 ft 6 in (12.52 m)** | 22 ft 3 in (6.78 m) | 14 ft 11 in (4.55 m)** | 14 ft 11 in (4.55 m)** |
Z™-45/25 RT | 51 ft 11 in (16.00 m) | 25 ft (7.62 m) | 23 ft 6 in (7.16 m) | 23 ft 6 in (7.16 m) |
Z™-60/34 | 66 ft 4 in (20.39 m) | 36 ft 3 in (11.05 m) | 27 ft (8.23 m) | 27 ft (8.23 m) |
Z™-80/60 | 84 ft (25.77 m) | 60 ft (18.29 m) | 29 ft (8.83 m) | 29 ft (8.83 m) |
ZX™-135/70 | 141 ft (43.15 m) | 69 ft 9 in (21.26 m) | 75 ft 6 in (23.01 m) | 75 ft 6 in (23.01 m) |
Sendhamarai Engineering Offer Genie boom lifts for Sales - Services - Hire in South - India Region
